Dolphin Wave 75 Parts List

$2.30 – $647.05

#01 - Chassis/Frame quantity	#01 - Chassis/Frame	$45.80
#04 - Motor unit quantity	#04 - Motor unit	$647.05
#05 - Impeller & Screw quantity	#05 - Impeller & Screw	$17.70
#06 - Guide Wheel quantity	#06 - Guide Wheel	$22.70
#07 - Drive Pulley quantity	#07 - Drive Pulley	$33.90
#08 - Drive Tracks (long, yellow) quantity	#08 - Drive Tracks (long, yellow)	$37.10
#09 - Hexagon Drive Assembly quantity	#09 - Hexagon Drive Assembly	$9.15
#10 - Side Panel Orange quantity	#10 - Side Panel Orange	$23.85
#12 - Wheel Tube Assembly quantity	#12 - Wheel Tube Assembly	$91.65
#16 - Retrofit for Cable Connector 3pin quantity	#16 - Retrofit for Cable Connector 3pin	$11.00
#17 - Amphenol Plug quantity	#17 - Amphenol Plug	$36.65
#20 - Wave 75 Outer Casing quantity	#20 - Wave 75 Outer Casing	$183.35
#21 - Impeller Cover quantity	#21 - Impeller Cover	$7.35
#22 - Filter bag 70ml quantity	#22 - Filter bag 70ml	$54.65
#23 - Handle Assembly quantity	#23 - Handle Assembly	$91.65
#24 - Wireless Remote quantity	#24 - Wireless Remote	$148.60
#26 - Brush – Grey CB (Pack 4) quantity	#26 - Brush – Grey CB (Pack 4)	$101.40
#14.03 Climbing Ring (Pack 4) quantity	#14.03 Climbing Ring (Pack 4)	$71.65

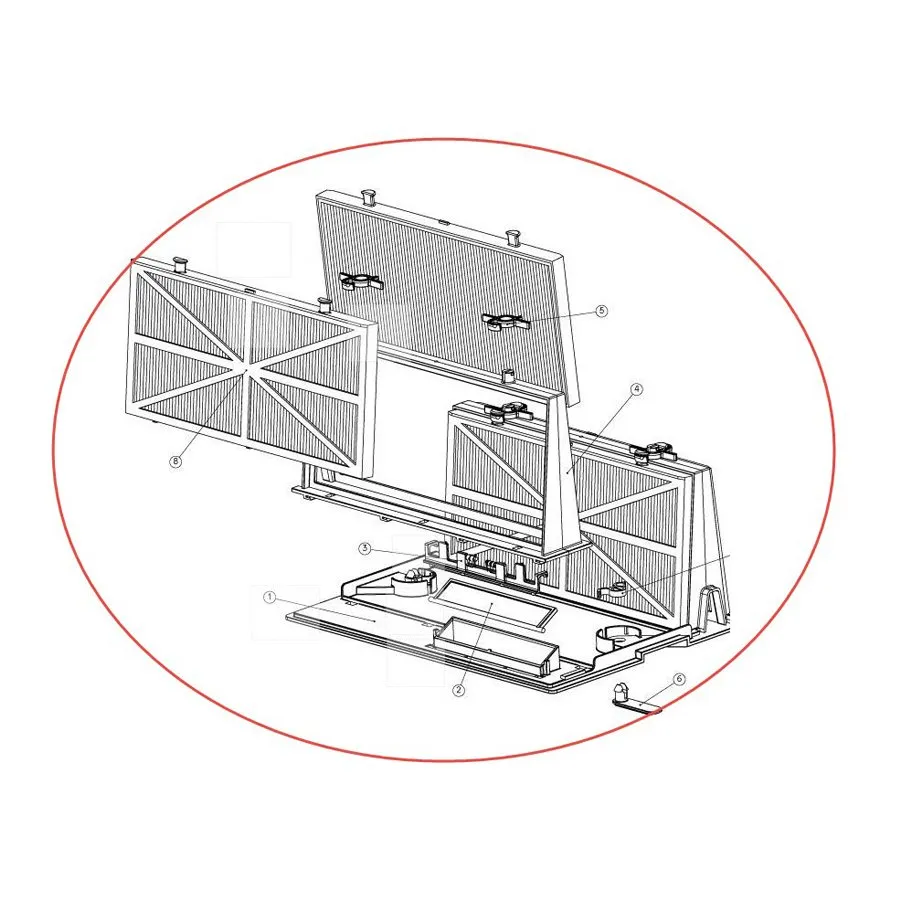

View products	#28 - Complete Cartridge Assembly	$1.85 – $183.35
#29 - Filter Screen quantity	#29 - Filter Screen	$5.50
#30 - Bottom Lid Assembly quantity	#30 - Bottom Lid Assembly	$48.50
#31 - Power Supply quantity	#31 - Power Supply	$485.35
Power Cable (To Outlet) quantity	Power Cable (To Outlet)	$25.00
Cable and Swivel 30mm quantity	Cable and Swivel 30mm	$647.05
Amphenol Socket for Power Supply quantity	Amphenol Socket for Power Supply	$14.65

Categories: Maintenance and Cleaning Equipment, Vacuums and Parts

Description
Reviews (0)

Description

Parts list for the Wave 75 Robotic Pool Vacuum.

Commercial Aquatics is a factory authorized Warranty and Repair Centre for Hayward and Maytronics Commercial Robotic Pool Cleaners. Our Centre facilitates repairs and minimizes downtimes substantial parts inventories are maintained.
